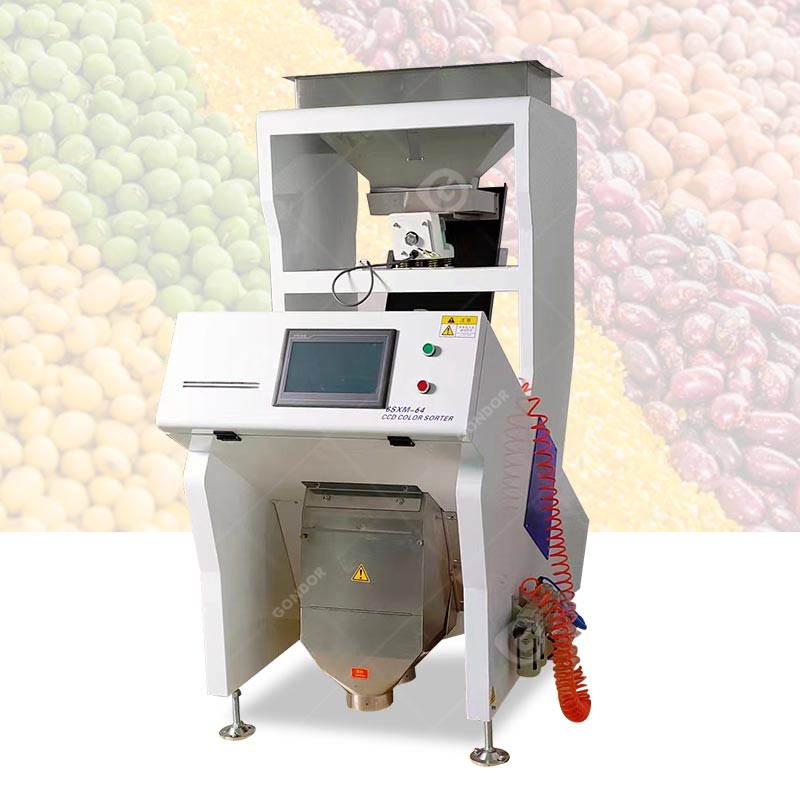

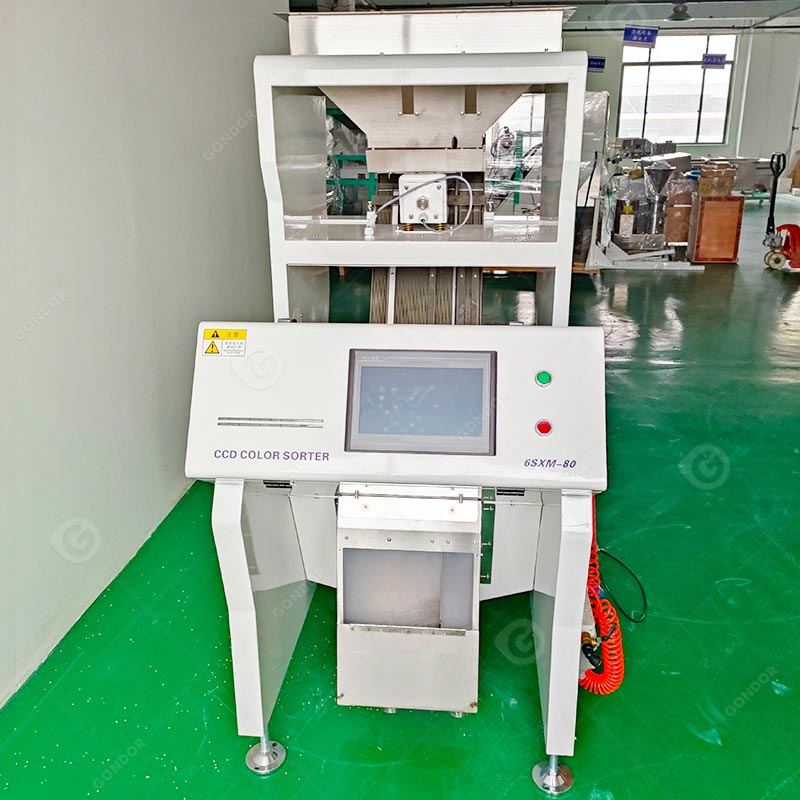

Macchina per la selezione dei colori

High-precision color sorting machines utilize advanced cameras and pneumatic systems to remove impurities, garantendo 99% purity and maximum production efficiency.

Macchina per la selezione dei colori

Enhance product quality with our high-precision color sorter. Featuring intelligent cameras and advanced air systems, it removes impurities with 99% precisione, ensuring maximum purity and efficiency for your production line.

  • Marchio: Gondor
    Componente principale: CCD
    Energia: 0.5chilowatt
    Capacità produttiva: 0.2-0.4t/h
    Airtight Pressure: 0.6-0.8(MPa)
    Specific Air Consumption: 100-300L/Min
    Sorting Accuracy Rate: ≥99,99%

Gondor Color Sorting Machine Introduction

Our advanced grain color sorter machine provides intelligent solutions for modern food processing, ensuring the ultimate purity of various agricultural products. By utilizing high-resolution cameras and a precise air flow system, the equipment automatically identifies and rejects materials with inconsistent colors or defects. With a sorting accuracy of over 99%, it achieves a high selection rate while minimizing material loss, significantly enhancing both product quality and production efficiency.

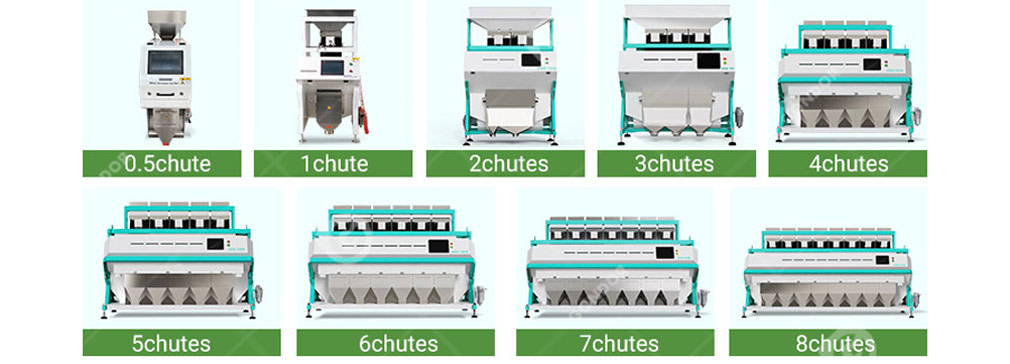

Color Sorting Machine Models2
Whether you require a peanut color sorter machine for oilseed processing or a versatile system for grains and seeds, our technology easily handles complex multi-dimensional sorting tasks involving color, forma, and overall grade. To learn more about our technology or to get a competitive color sorting machine price, please contact us for a customized color sorting machine solution.

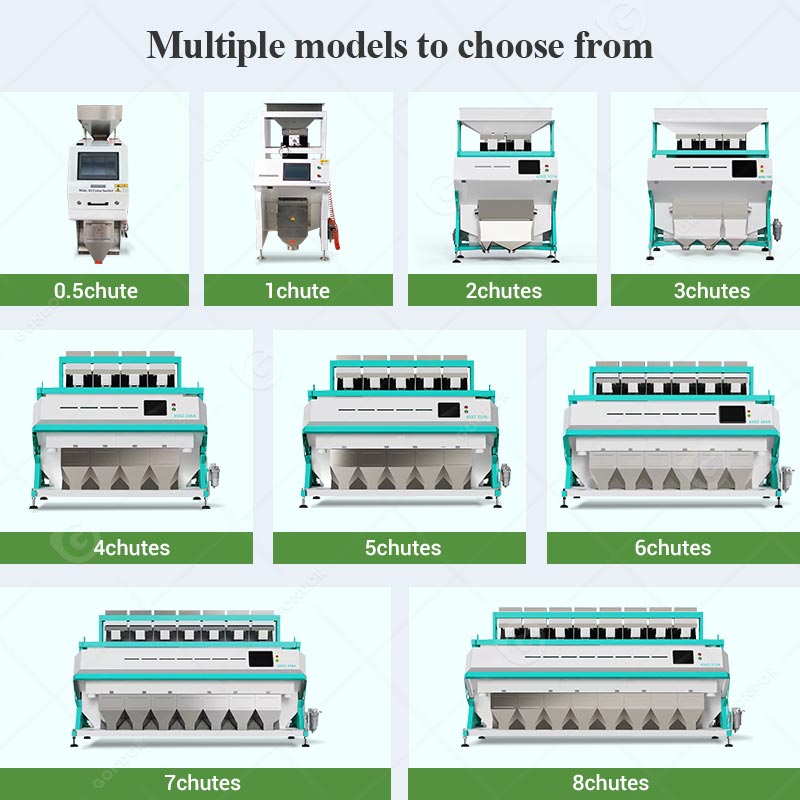

Modelli di selezionatrici a colori Gondor

We offer a wide range of specifications from 0.5 A 12 chutes to meet different production scales. Detailed technical parameters are shown in the table below:

Modello Energia Voltaggio Pressione della fonte d'aria Consumo di gas Misurare Peso Produttività Dimensioni dell'imballaggio
0.5scivolo 0.5chilowatt 220v 0.6-0.8mpa 0.1-0.3m3/min 42*110*132cm 100kg 0.2-0.4t/h 125*62*150cm
1scivolo 0.8chilowatt 0.3-0.8m3/min 88*150*176cm 300kg 0.8-1.5t/h 110*168*210cm
2cade 1.3chilowatt 0.5-1.0m3/min 131*150*176cm 400kg 1.2-2.5t/h 165*167*210cm
3cade 1.9chilowatt 0.8-1.5m3/min 165*150*176cm 500kg 2.5-4t/h 195*167*210cm
4cade 2.4chilowatt 1.0-2.0m3/min 198*150*176cm 650kg 3-3.5t/h 230*167*210cm
5cade 3chilowatt 1.3-2.1m3/min 232*150*176cm 800kg 4.0-8t/h 260*167*210cm
6cade 3.6chilowatt 2.0-3.5m3/min 266*150*176cm 1000kg 5.0-10t/h 300*167*210cm
7cade 4.1chilowatt 2.5-4.3m3/min 300*150*176cm 1200kg 6.0-12t/h 322*167*210cm
8cade 4.7chilowatt 3.0-4.5m3/min 333*150*176cm 1400kg 7.0-14t/h 350*167*210cm
9cade 5.2chilowatt 5.0-6.5m3/min 367*150*176cm 1800kg 8.0-15t/h 415*167*210cm
10cade 5.7chilowatt 6.0-7.0m3/min 400*150*176cm 2200kg 9.0-16t/h 450*167*211cm
11cade 6.2chilowatt 6.5-7.5m3/min 433*150*176cm 2600kg 10.0-17t/h 485*167*212cm
12cade 6.7chilowatt 7.0-8.0m3/min 466*150*176cm 3000kg 11.0-18t/h 500*167*213cm

Gondor Color Sorting Machine Application Products

Verdure disidratate

Quickly capture color defects and foreign materials in dried vegetables to guarantee high efficiency in food processing.
Various Dried Fruits

Automatically identify and separate defective fruits and shells to ensure consistency in the size and quality of finished products.
Specialty Economic Crops

Provide customized solutions for materials like tea and dried flowers to optimize final product grading and market value.
Semi & Noci

Precisely remove discolored kernels and subtle impurities to enhance the appearance and quality of pine nuts, anacardi, and various seeds.
Color Sorting Machine for Rice
Color Sorting Machine for Soybean
Color Sorting Machine for Red Dates
Color Sorting Machine for Almonds

Gondor Color Sorting Machine Application Industries

Food Processing Industries

Widely used in dried fruit and vegetable production lines to ensure the quality of finished products before packaging.
Agricultural Planting Bases

Assist local production areas in primary screening and grading to quickly remove impurities and enhance competitiveness.
Fabbriche di verdure disidratate

Perform precision sorting after drying to efficiently identify and remove discolored slices or foreign materials.
Dried Fruit Trade Industries

Support the import and export sorting of bulk dried fruits and nuts to achieve uniform appearance and high-standard grading.

Gondor Color Sorting Machine Features

  • Intelligent Sorting System: Automatically matches the optimal solution based on material characteristics to ensure high precision in every sorting task.
  • Intelligent Cloud Service: Supports remote control and status detection through the cloud, making production line management more convenient and efficient.
  • Intelligent Cloud Detection: Real-time monitoring of air pressure and light sources ensures stable performance during long-term continuous operation.
  • Multi-functional Design: Supports flexible channel expansion, allowing one machine to handle various materials and maximizing the return on investment.

Domande frequenti

1. How Does the Color Sorter Work?
The color sorting machine captures real-time images of materials using high-resolution cameras and analyzes their color and optical properties via intelligent software. Once impurities or discolored particles that fail to meet preset standards are identified, the system activates pneumatic nozzles to precisely eject them from the material stream.
2. What Types of Materials Can the Color Sorter Handle?
This equipment is versatile and widely used for refining agricultural products like rice, grano, and beans, as well as removing impurities and grading materials in the seed, frutta secca, plastic granule, and mineral industries.
3. How Accurate Is the Color Sorter?
Modern color sorting technology is highly mature, with accuracy rates typically exceeding 99%. Specific performance may vary slightly depending on material characteristics and machine parameter settings.
4. How Do I Configure the Machine Settings?
Operators can easily configure the machine through an intuitive user interface. Sorting criteria, such as color variance, brightness thresholds, and other optical parameters, can be flexibly adjusted to meet specific production requirements.
5. What Maintenance Is Required for the Color Sorter?
It is important to regularly clean optical components and the feeding system to maintain detection sensitivity. Inoltre, keep the software updated and check the pneumatic system periodically for any leaks or blockages.
6. What Is the Expected Service Life of the Machine?
Under standard operating conditions and with regular maintenance, the service life of a color sorter can typically exceed 10 anni.
7. What Is the Processing Capacity (Produttività) of the Equipment?
Capacity depends on the specific model. Small-scale units can process hundreds of kilograms per hour, while large industrial models can handle several tons to dozens of tons per hour.
8. Does the Sorting Process Damage the Materials?
The system is designed with material protection in mind. The sorting process is extremely gentle and typically does not cause any noticeable damage to the integrity of the products.
9. What Economic Benefits Does an Investment in a Color Sorter Provide?
By improving product purity and reducing reliance on manual labor, a color sorter significantly lowers production costs and substantially increases the market value of the final output.
10. Do I Need a Professional for Installation and Commissioning?
To ensure optimal performance, it is highly recommended that installation and initial commissioning be handled by the supplier’s technical team or specially trained professionals.
