Efficient pillow packaging machine for fruits, verdure, and snacks with precise sealing and fast operation.
Confezionatrice automatica per cuscini

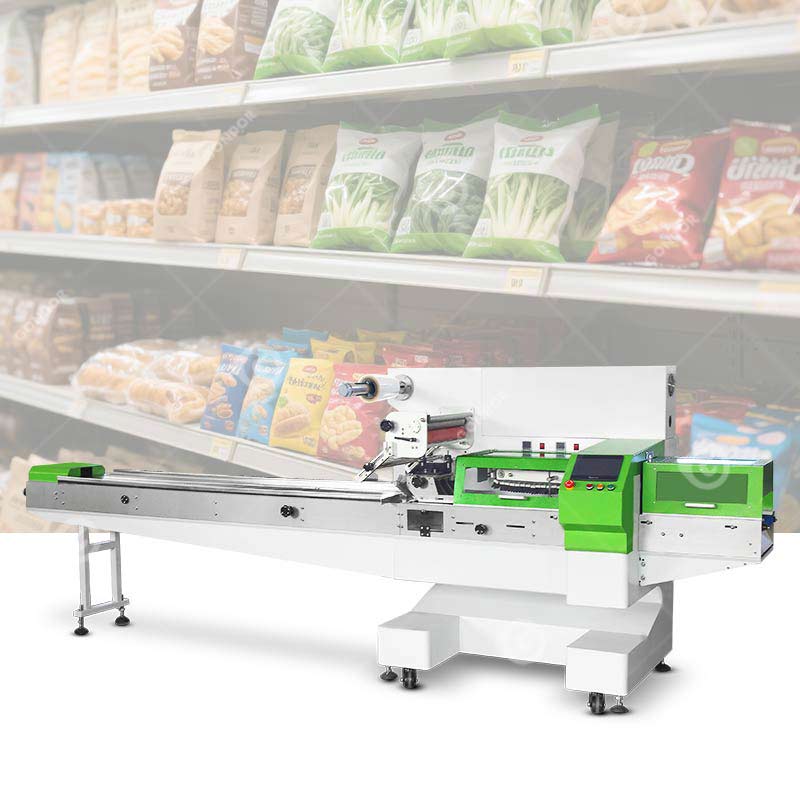

IL pillow packaging machineis a continuous automatic system for efficiently packaging fruits, verdure, spuntini, and other products, ensuring precise sealing, high-speed operation, and consistent, hygienic packaging results.

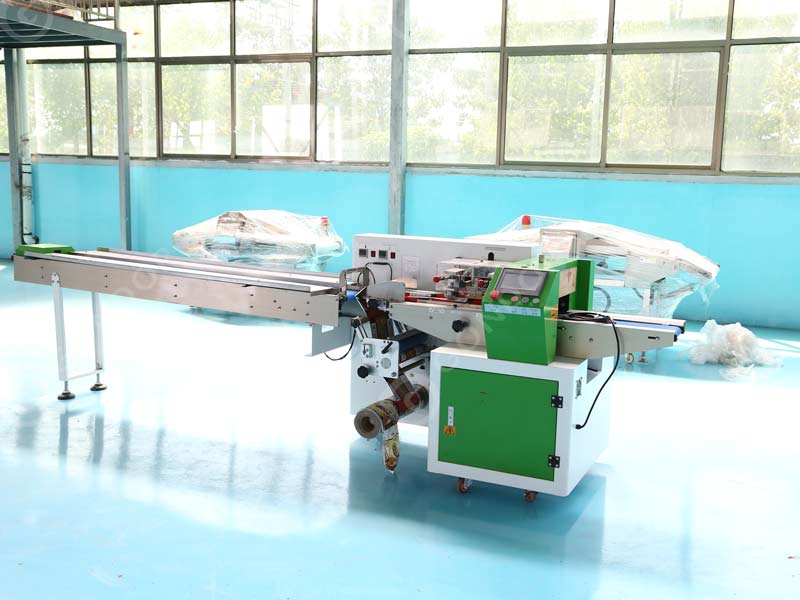

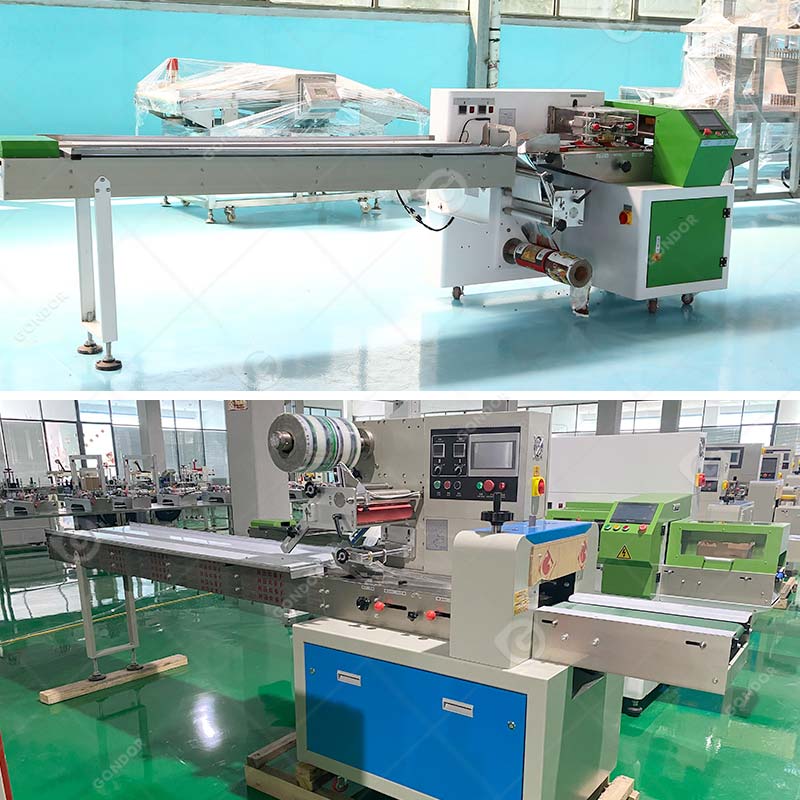

IL pillow packaging machineis a continuous automatic packaging system named after the pillow-shaped appearance of the finished package. It forms bags from film rolls, automatically feeds products into the packaging film, and completes the process through longitudinal sealing, end sealing, and cutting. Con prestazioni stabili, high automation, and fast packaging speed, the machine enables efficient continuous packaging. As a professional pillow packaging machine manufacturer, we provide different models to meet various production capacities and packaging requirements.
In the fruit and vegetable processing industry, the pillow packaging machine is widely used for packaging fresh or pre-treated produce such as apples, arance, pomodori, cucumbers, patate, cipolle, e limoni. It is also suitable for cut fruits, salad vegetables, mais, mushrooms, e altri prodotti agricoli. When integrated with conveyors, weighing machines, or sorting systems, the automatic pillow packaging machine helps achieve efficient, igienico, and well-organized packaging, improving product appearance and market competitiveness.
This pillow packing machine is commonly used in fruit and vegetable sorting centers, agricultural packaging facilities, fresh produce distribution centers, and supermarket supply chains. Packaged products become cleaner, more attractive, and easier to transport and store, making it an important piece of equipment in modern fruit and vegetable packaging operations.
Gondor Pillow Packaging Machine Models
The following are the main technical parameters and model configurations of pillow packaging machines, which can help you select the appropriate equipment model according to different product sizes and packaging requirements. Different models differ in packaging size range, packaging speed, and power to meet diverse production needs.
Parametro tecnico
Modello
B-320XSE
B-350SE
B-430SE
B-430XSE
Film Width
Max: 320mm
Max: 350mm
Max: 430mm
Bag Length
60-6000mm
80-6000mm
80-300mm
80-6000mm
Bag Width
35-140mm
50-160mm
50-200mm
Product Height
5-55mm
5-60mm
Film Roll Diameter
Max: 300mm
Packing Speed
25-230sacchetti/min
Machine Power
4.5chilowatt
5.7chilowatt
5.9chilowatt
Alimentazione elettrica
220v
Dimensioni della macchina
3940*880*1520mm
3940*1010*1390mm
4070*930*1465mm
3940*940*1520mm
Peso della macchina
430kg
490kg
480kg

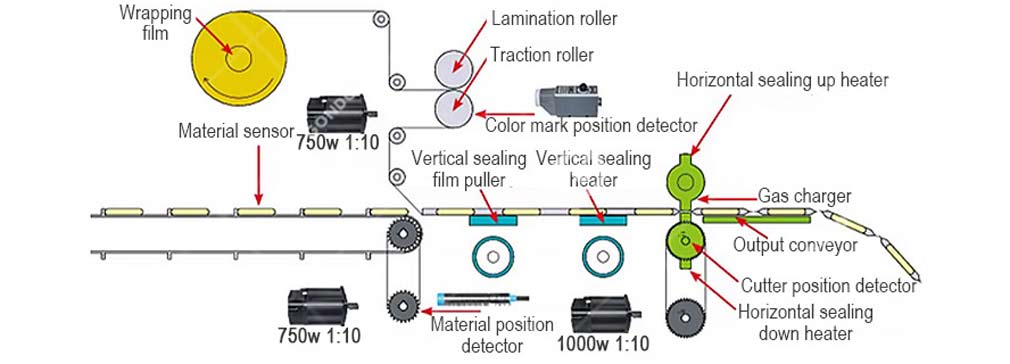

Working Principle of the Pillow Packaging Machine
The pillow packaging machine works through a continuous automatic packaging process. Primo, the packaging film roll is installed on the film holder and pulled forward by traction rollers. Allo stesso tempo, the product is conveyed forward by the feeding conveyor. The film is then formed into a bag shape around the product through the forming device.
Prossimo, the vertical sealing heater seals the bottom and side of the packaging film to form a tube-shaped package. Dopo di che, the horizontal sealing device performs cross sealing and cutting to complete each individual package. During the whole process, sensors and photoelectric color mark detectors ensure accurate positioning and cutting, allowing the machine to package products continuously, efficiently, and neatly.
Suitable for packaging fruits such as apples, banane, pere, arance, and other fresh produce for clean and attractive retail presentation.
Fresh Vegetables
Ideal for vegetables including lettuce, patate, pomodori, peppers, cucumbers, and other farm products to improve packaging efficiency.
Processed Fruit Products
Suitable for packaging processed fruits such as fruit slices, fruit snacks and dried fruit products.
Vegetable Snacks
Can package vegetable-based snack foods such as mushroom snacks, vegetable chips, and other processed vegetable products.
Prodotti agricoli
Applicable to various agricultural products including grains, noci, and dehydrated fruits or vegetables.
Frozen Foods
Suitable for packaging frozen food products such as frozen vegetables, dumplings, panini, and ready-to-cook foods.
Application Industries for Gondor Pillow Packaging Machine
Industria della lavorazione della frutta
Used for packaging fresh fruits, cut fruits, and processed fruit products to keep packages clean and visually appealing.
Industria della lavorazione delle verdure
Suitable for packaging vegetables such as mushrooms, mais, cucumbers, pomodori, e altri prodotti agricoli.
Industria degli snack
Widely applied to package snack foods including biscuits, bread, chocolate bars, and various leisure food products.
Industria degli alimenti surgelati
Applicable to frozen foods such as dumplings, panini, verdure surgelate, and ready-to-cook food products.
Agricultural Products Industry
Used for packaging dried agricultural products like nuts, frutta secca, cereali, and processed farm produce.
Industria della produzione alimentare
Commonly used in food factories and processing plants to achieve continuous automatic packaging.

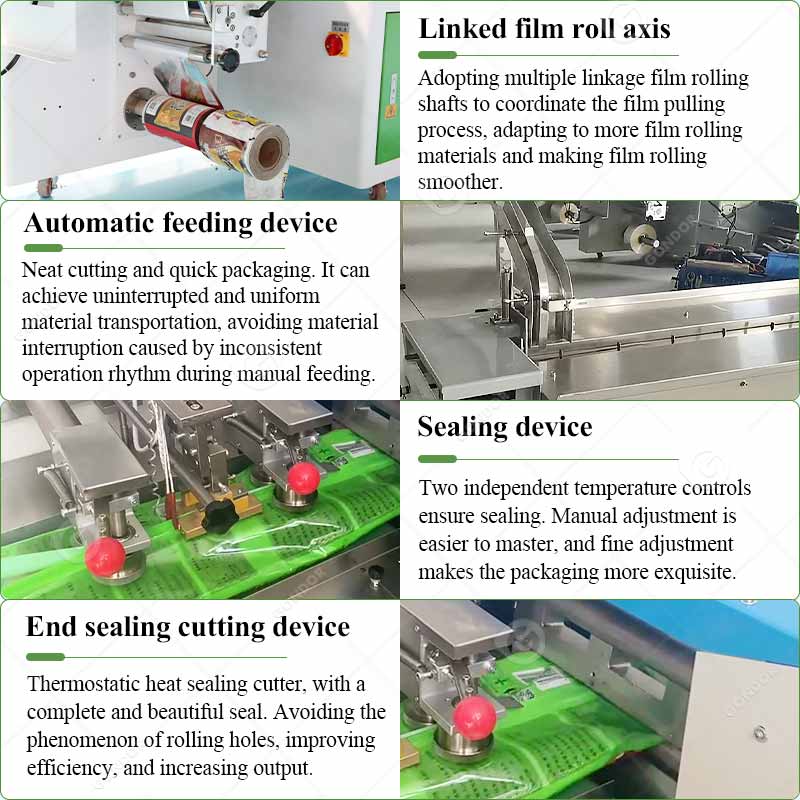

Gondor Pillow Packaging Machine Features
Three-Servo Intelligent Control:Equipped with a three-servo system that automatically detects product length and performs precise cutting without manual adjustment.

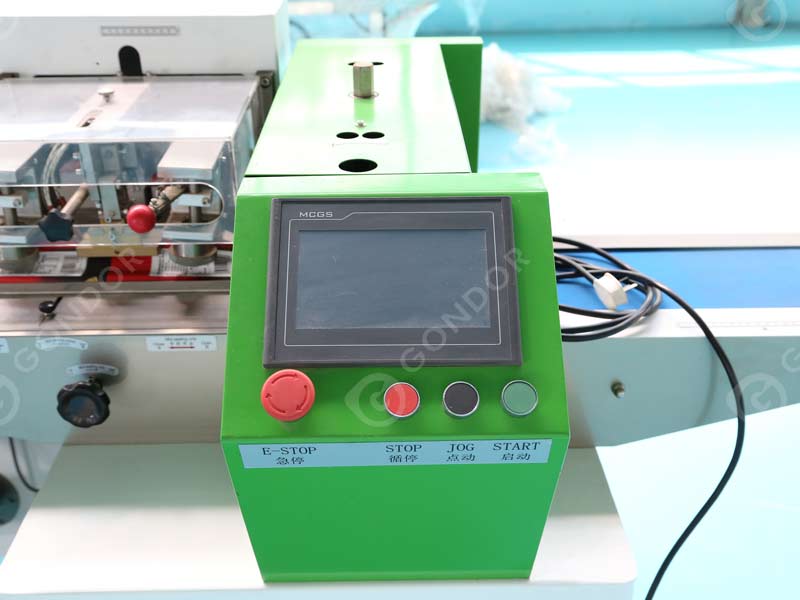

Automatic Fault Diagnosis:Built-in self-diagnosis system clearly displays faults, making troubleshooting faster and easier for operators.
High-Precision Photoelectric Tracking:High-sensitivity photoelectric color mark tracking ensures accurate sealing and cutting for consistent packaging quality.
Independent PID Temperature Control:Advanced PID temperature control maintains stable sealing temperature, suitable for various packaging films.
Film Saving and Clean Cutting:The machine can stop at a preset position, preventing film waste and avoiding knife sticking during operation.
Smart Software Control System:All machine functions are controlled by software, allowing easy parameter adjustment and future system upgrades.
Pillow Packaging Machine Working Video
Next is a short video demonstrating the working flow of a pillow packaging machine. The video showcases its efficient automated packaging operation, giving you a more intuitive understanding of its working process.
If you are interested in this pillow packaging machine, please feel free to contact us for detailed specifications and a quotation. Our team will recommend the most suitable model based on your product and packaging requirements.
Gondor Pillow Packaging Machine Introduction
IL pillow packaging machine is a continuous automatic packaging system named after the pillow-shaped appearance of the finished package. It forms bags from film rolls, automatically feeds products into the packaging film, and completes the process through longitudinal sealing, end sealing, and cutting. Con prestazioni stabili, high automation, and fast packaging speed, the machine enables efficient continuous packaging. As a professional pillow packaging machine manufacturer, we provide different models to meet various production capacities and packaging requirements.
This pillow packing machine is commonly used in fruit and vegetable sorting centers, agricultural packaging facilities, fresh produce distribution centers, and supermarket supply chains. Packaged products become cleaner, more attractive, and easier to transport and store, making it an important piece of equipment in modern fruit and vegetable packaging operations.
Gondor Pillow Packaging Machine Models
The following are the main technical parameters and model configurations of pillow packaging machines, which can help you select the appropriate equipment model according to different product sizes and packaging requirements. Different models differ in packaging size range, packaging speed, and power to meet diverse production needs.
Working Principle of the Pillow Packaging Machine
The pillow packaging machine works through a continuous automatic packaging process. Primo, the packaging film roll is installed on the film holder and pulled forward by traction rollers. Allo stesso tempo, the product is conveyed forward by the feeding conveyor. The film is then formed into a bag shape around the product through the forming device.
Prossimo, the vertical sealing heater seals the bottom and side of the packaging film to form a tube-shaped package. Dopo di che, the horizontal sealing device performs cross sealing and cutting to complete each individual package. During the whole process, sensors and photoelectric color mark detectors ensure accurate positioning and cutting, allowing the machine to package products continuously, efficiently, and neatly.
Gondor Pillow Packaging Machine Application Materials
Suitable for packaging fruits such as apples, banane, pere, arance, and other fresh produce for clean and attractive retail presentation.
Ideal for vegetables including lettuce, patate, pomodori, peppers, cucumbers, and other farm products to improve packaging efficiency.
Suitable for packaging processed fruits such as fruit slices, fruit snacks and dried fruit products.
Can package vegetable-based snack foods such as mushroom snacks, vegetable chips, and other processed vegetable products.
Applicable to various agricultural products including grains, noci, and dehydrated fruits or vegetables.
Suitable for packaging frozen food products such as frozen vegetables, dumplings, panini, and ready-to-cook foods.
Application Industries for Gondor Pillow Packaging Machine
Gondor Pillow Packaging Machine Features
Pillow Packaging Machine Working Video
Next is a short video demonstrating the working flow of a pillow packaging machine. The video showcases its efficient automated packaging operation, giving you a more intuitive understanding of its working process.
If you are interested in this pillow packaging machine, please feel free to contact us for detailed specifications and a quotation. Our team will recommend the most suitable model based on your product and packaging requirements.
